Simulation Tables
Simulation Tables for Increased Performance and Reliability
Providing a full six degrees of freedom (6 DOF) our Simulation Tables simulate acceleration and displacement outputs reproducing key data collected on proving grounds. Sometimes called a Multi-Axis Shaker Table or MAST, Moog’s integrated control hardware and software provides the most flexible, highest performing test equipment available.
Select a system for more information:

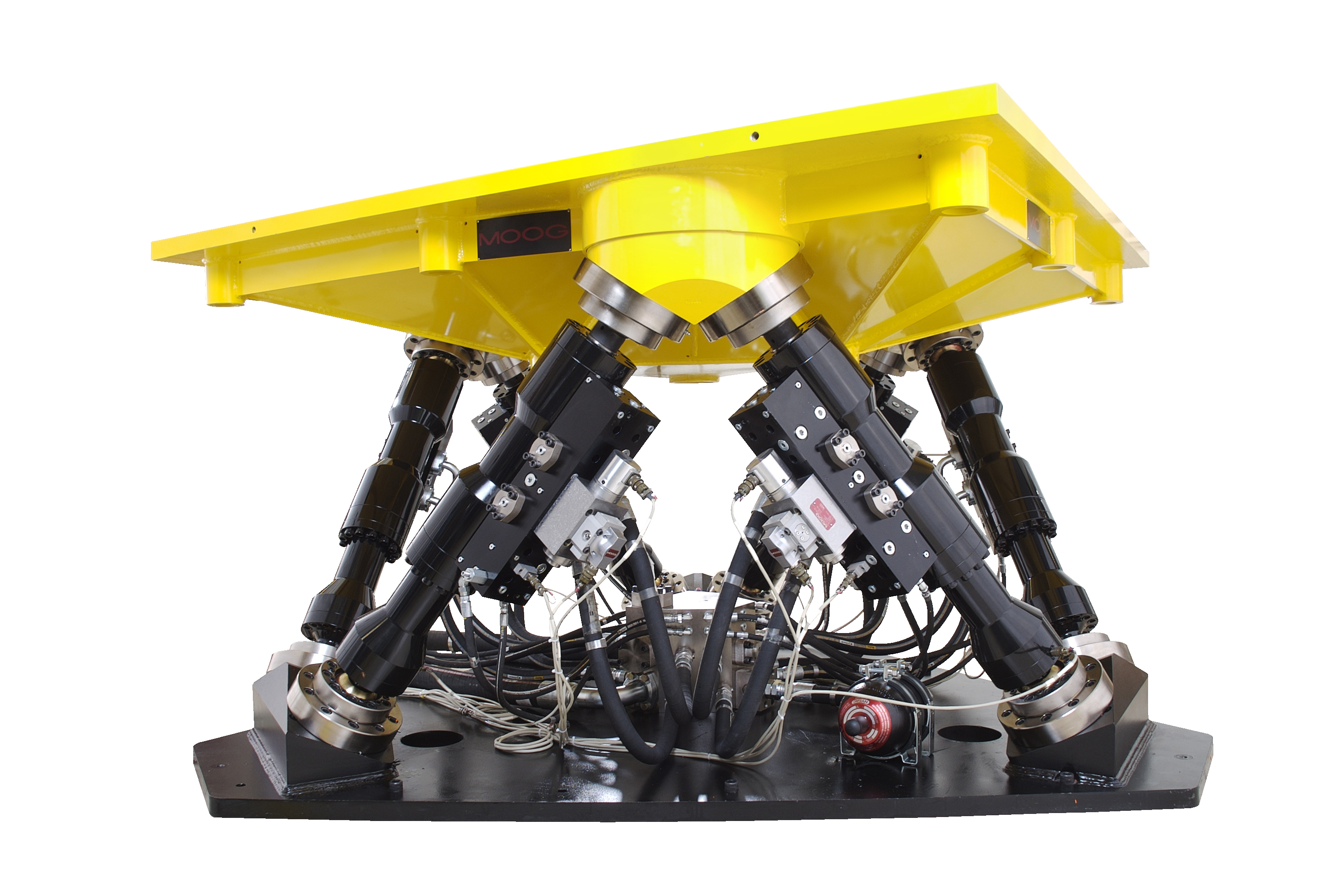

Hydraulic Simulation Tables
A Hydraulic Simulation Table (sometimes also known as a multi-axis shaker table) is a dynamic system, designed to perform research and development tests.

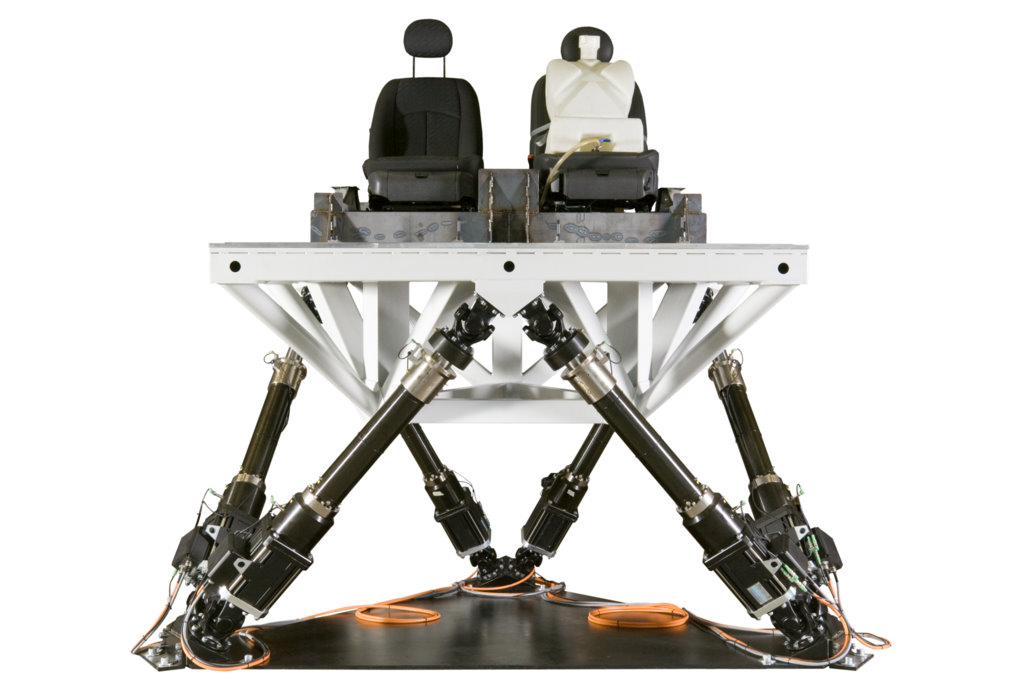

Electric Simulation Tables
.jpg)
An electric simulation table (sometimes also known as multi axis shaker table) is a dynamic 6 DOF motion system designed to perform research and development tests and driver trainings.
Our unique design takes up less than half the space of conventional shaker tables, saving on valuable lab space and reducing overall facilities costs.
Advantages:
- Faster testing
- Less downtime
- Smaller footprint
- Safer, more reliable performance
- Lower energy consumption
Applications:
- Noise and vibration testing
- Component and subsystem structural performance
- Ride quality assessment of seat systems, cockpit modules and entire vehicles
- Dynamic functional testing on fuel tanks, antennas, turrets and more
