Electric Simulation Tables for Hardware And Human In The Loop Testing
An electric simulation table, also known as multi axis shaker table, is a dynamic 6 DOF motion system designed to perform research and development tests and driver trainings. Position, velocity and acceleration are controlled by the system through integrated control hardware and software.
Typical tests performed with the Electric Simulation Table are driving simulation, ride and comfort testing, qualitative evaluation of human response, vehicle components, NVH, BSR, functional testing, and medical research.

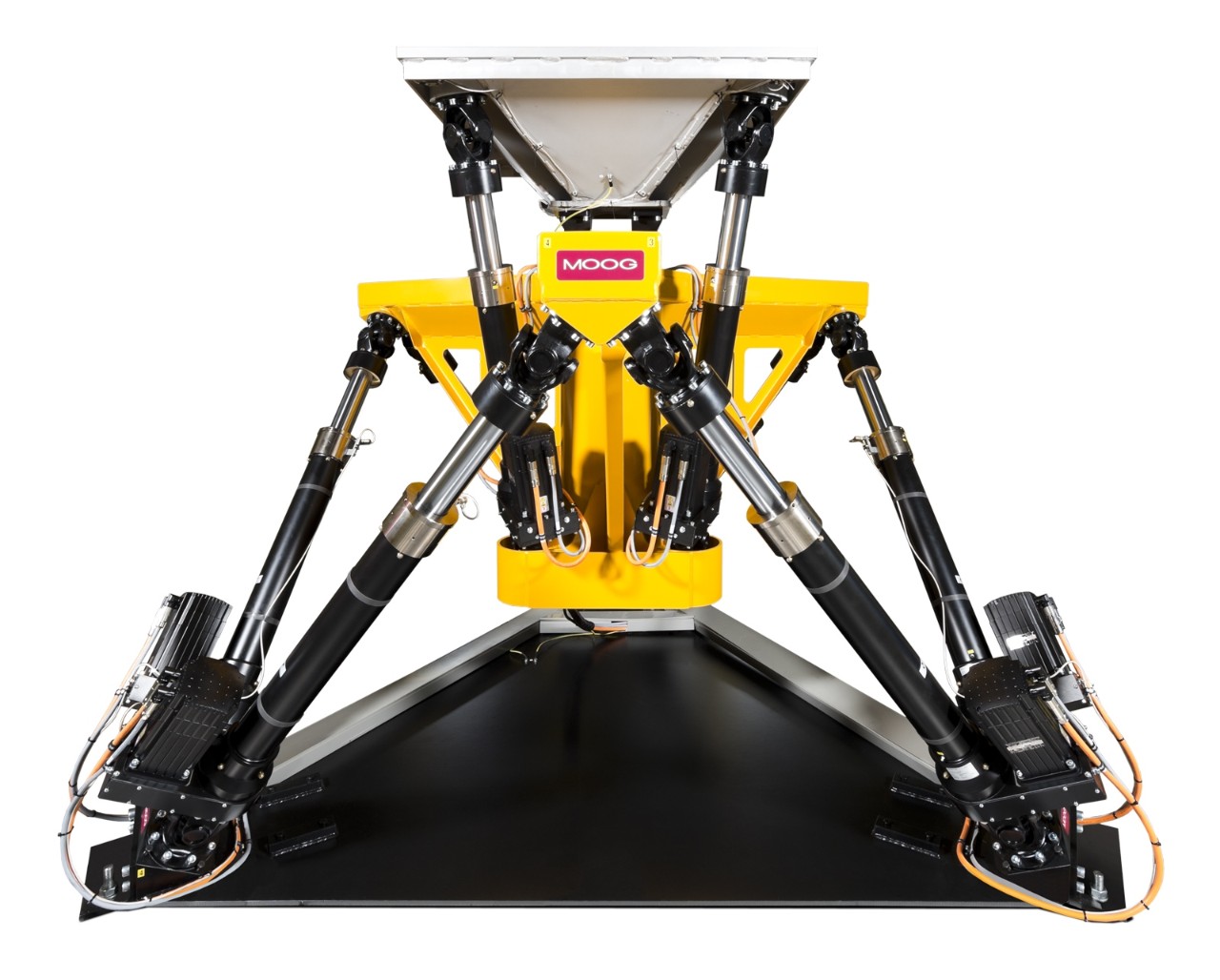

The patented 8-DOF (degrees of freedom) Moog test system is comprised of a 6-DOF Electric Simulation Table with an innovative extra 2-DOF tilt table on top for large angular pitch and roll motions up to 30 degrees. The total pitch and roll angles of the test system exceed 50 degrees.
The Electric Simulation Table with Tilt is part of the Simulation Table product family and can be electric or hydraulic, depending on the performance requirements and application.
- New test applications
- User friendly
- Cost effective
- Faster speed of testing
- Minimal facility requirements
- Driving simulation
- Ride and comfort testing
- Qualitative evaluation of human response
- Vehicle components and Functional testing
- NVH and BSR testing
- Medical research
